BubbleDeck slab design, detailing and layout
Production, coordination and site logistics support

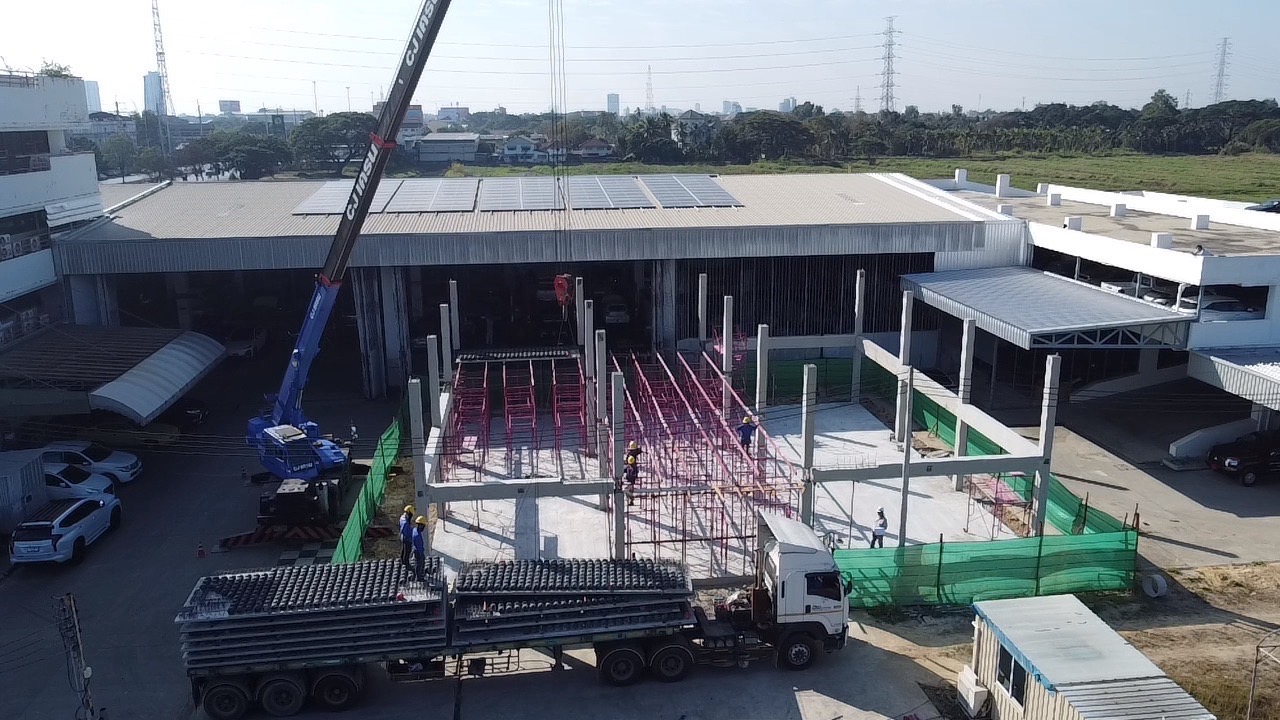

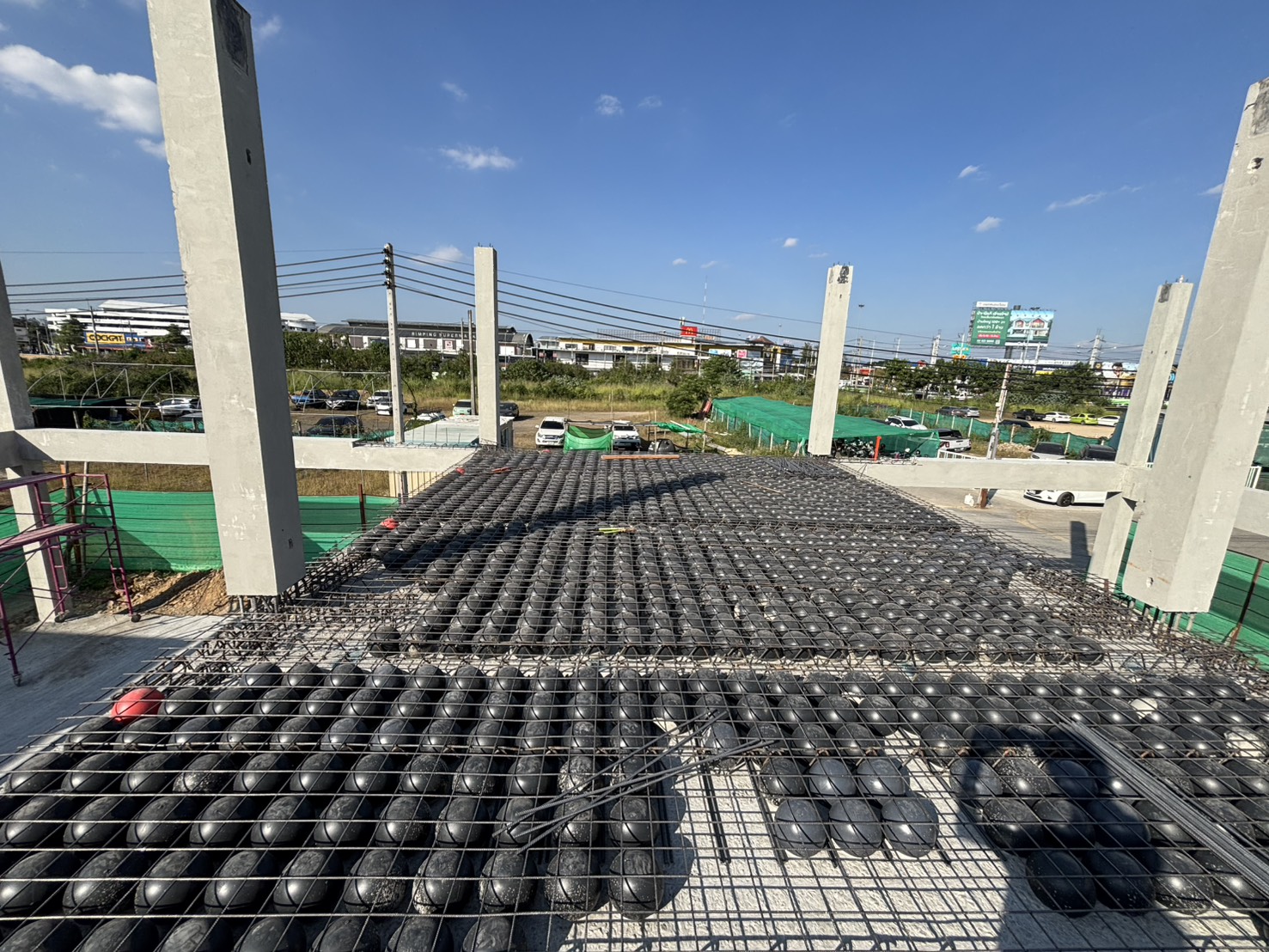

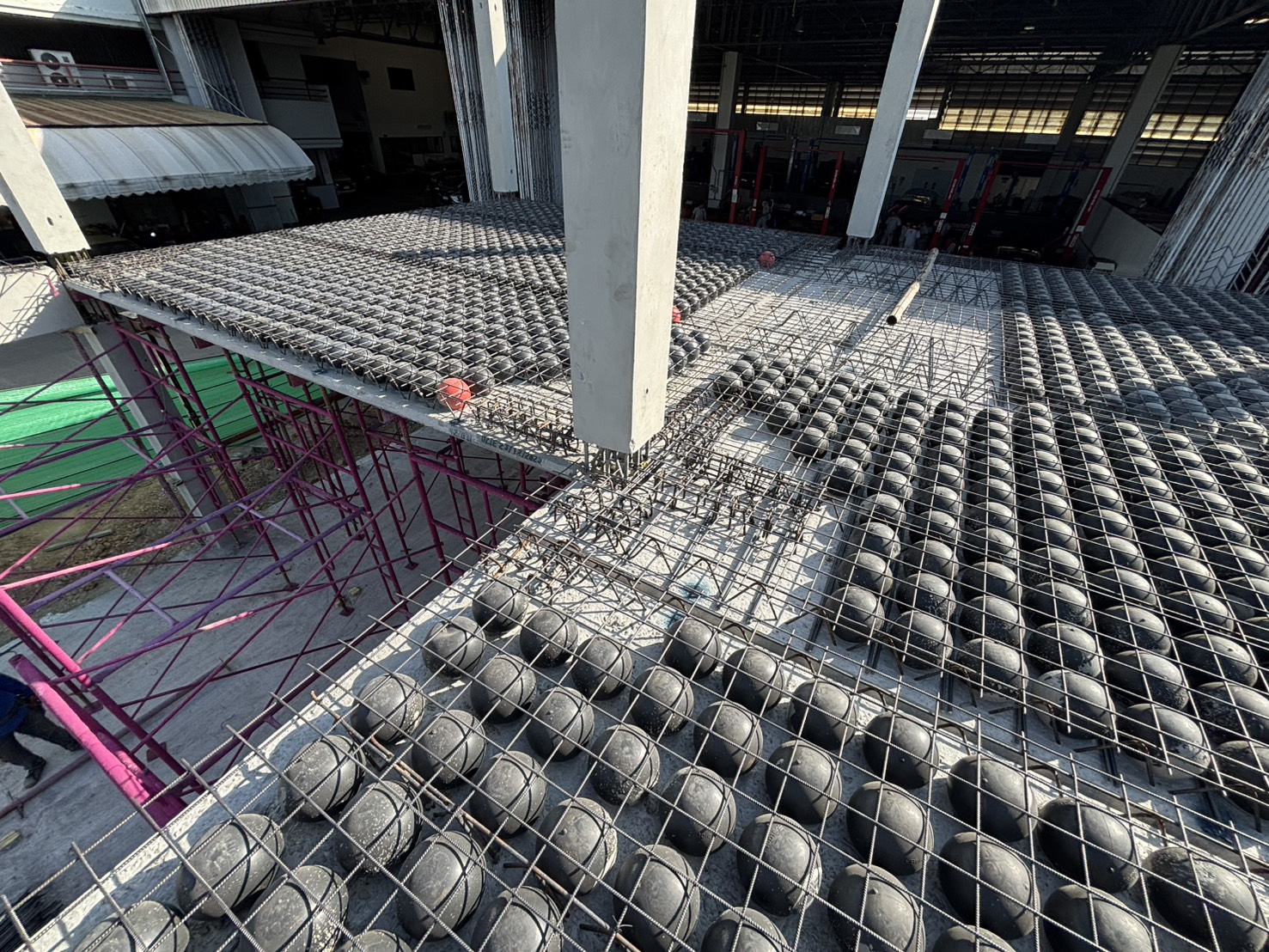

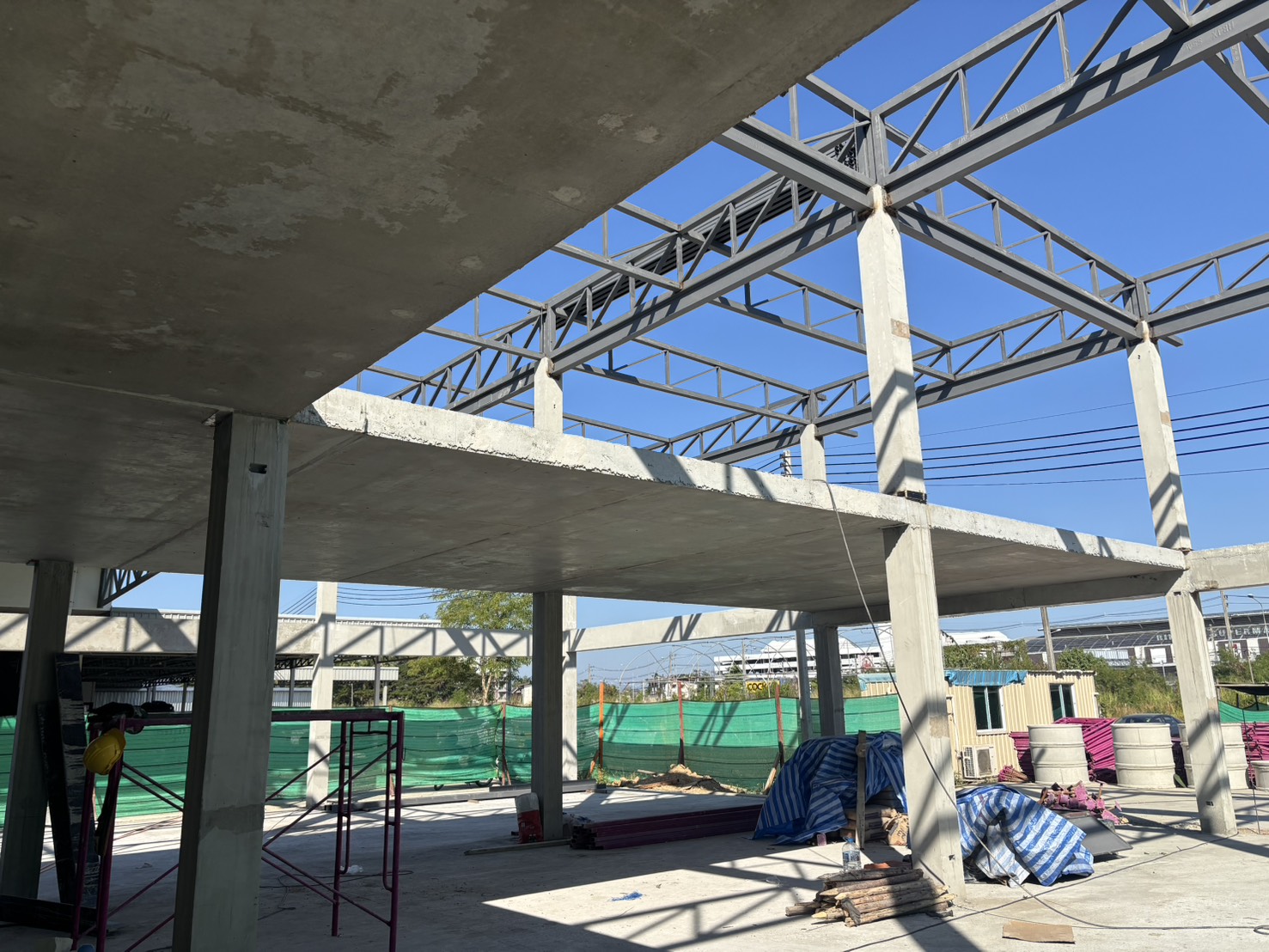

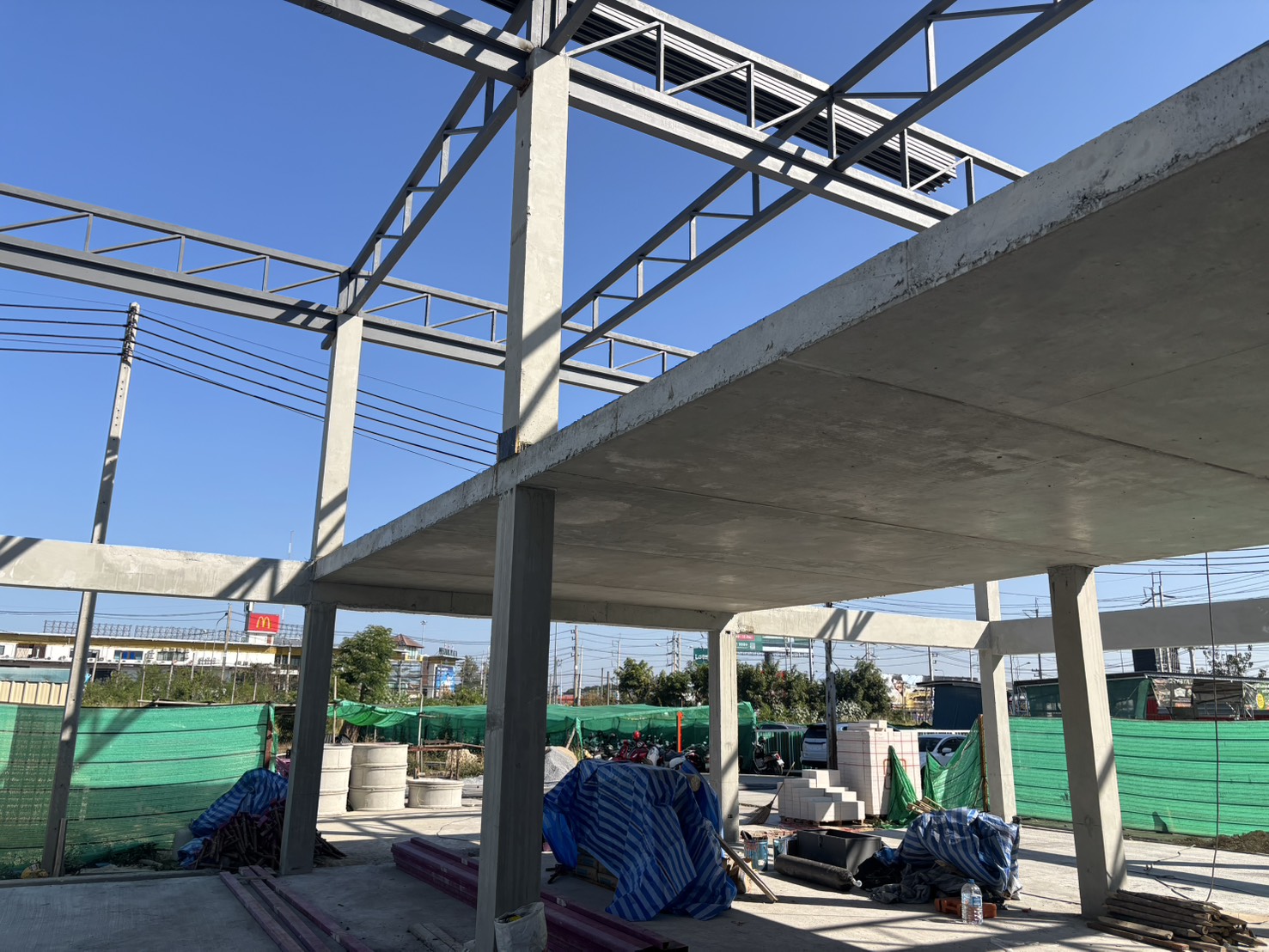

This Mitsubishi dealership project comprises a full showroom and two-story office complex. The structure was designed using a hybrid precast system—combining factory-produced columns and beams with the semi-precast BubbleDeck slab system. This integration offered not only engineering efficiency but also exceptional speed, quality control, and installation predictability.
Challenges:
The entire structure needed to be installed and completed before the end of the year, with a non-negotiable construction timeline.
The project site was nearly 700 km away from the production plant, requiring long-distance transport of the semi-precast BubbleDeck slab without damage or delays.
Solutions:

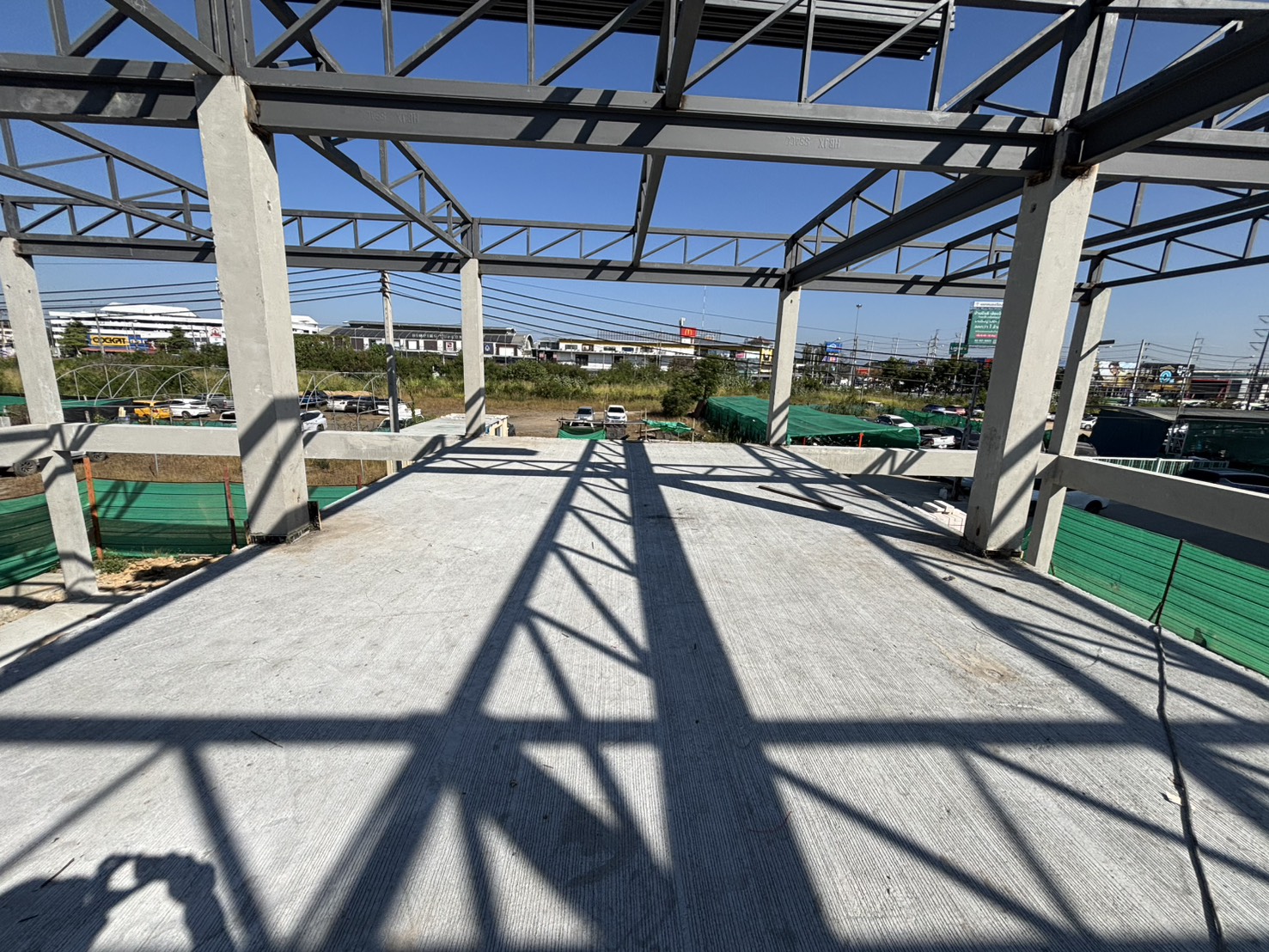

By combining full precast columns and beams with the lightweight, modular BubbleDeck slab, the team achieved rapid construction within the set timeframe. Notably, the 2nd floor slab—spanning nearly 150 sqm—was installed in under two hours. This milestone underscored the power of well-executed prefabrication: when elements are designed precisely and manufactured to high-quality standards, construction becomes faster, leaner, and more cost-effective.
Thanks to our exceptional partners who executed the production, delivery, and installation with precision and coordination. The project is also a testament to the nationwide applicability of the BubbleDeck system—despite the 700 km transport distance, all slabs arrived intact and were ready for immediate installation. This successful outcome highlights the system’s robustness, transportability, and suitability for projects of any size or location across Thailand.
